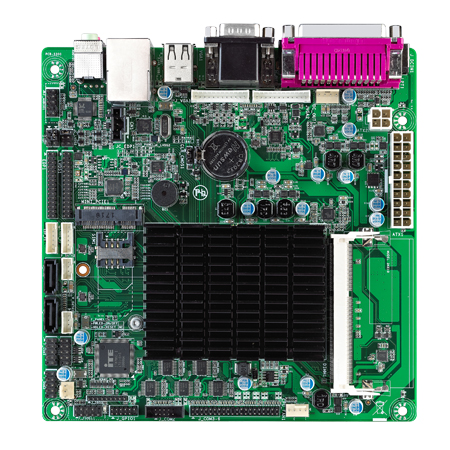

LX-19016EP

Intel Celeron J1900处理器, 6*COM, 10*USB, 1*LAN, 1*RJ11, 支持双eDP显示

采用Intel Bay Trail Celeron J1900处理器

6*COM, 10*USB, 1*千兆网口

1*VGA, 2*eDP, 支持双eDP屏独立显示

1*Mini-PCIe支持mSATA, 可选Wifi/3G/4G

1*钱箱接口RJ11, 1*触摸屏控制接口

Mini-ITX, 可选DC 12V或ATX供电

驱动/资料下载

规格

General

CPU : Intel^® Celeron^® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Memory : DDR3L-1333, 1*SO-DIMM, up to 8 GB

Storage : 2*SATA 2.0

Expansion Interface : 1*Mini-PCIe (mSATA/WiFi/3G/4G supported)

BIOS : AMI UEFI BIOS

System : Windows 7/8.1/10, Linux

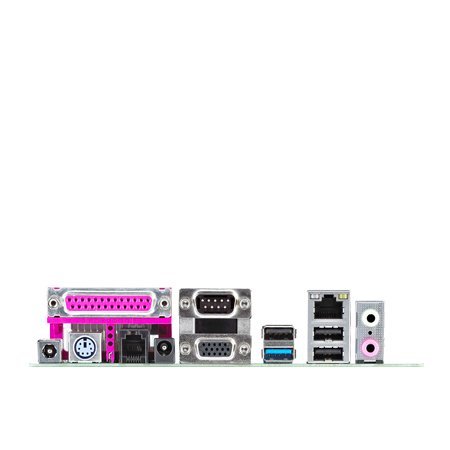

I/O Interface

Ethernet : 1*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

Serial : 5*RS232, 1*RS232/TTL

USB : 1*USB 3.0, 7*USB 2.0

Audio : Realtek^® ALC662 5.1 channel HDA Codec, with MIC/Line-out

PS/2 : 1*PS/2 Header (Keyboard)

Parallel : 1*LPT Port

GPIO : 8*Programmable GPIO

Feature Interface : 1*Cash Drawer Control Port (RJ11) , 1*Touch Panel Controller Header

Display

Display Interface : 1*VGA: max resolution up to 2560*1600@60Hz , 1*VGA/eDP: VGA, max resolution up to 1920*1200@60Hz , eDP, max resolution up to 1920*1200@60Hz , 1*LVDS/eDP: LVDS, Dual channel 24 bit , max resolution up to 1920*1200@60Hz , eDP, max resolution up to 1920*1200@60Hz

Multiple Display : Dual

Mechanical & Environment

Dimension : 170*170mm

Power Input : ATX PSU or DC 12V

Temperature : Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity : Operation: 10%~90%, Storage: 5%~95%, non-condensing
