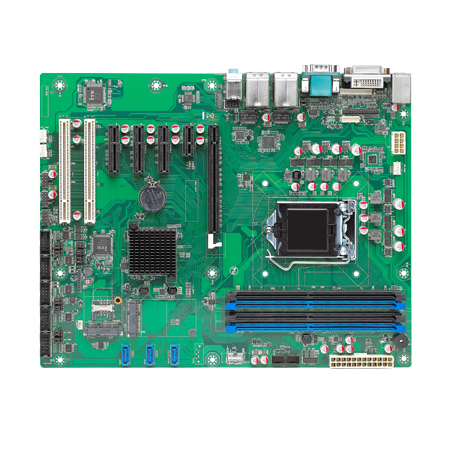

Intel6/7代Corei3/i5/i7处理器,Q170芯片,5*PCIe,2*PCI,6*COM,13*USB,2*LAN
General
CPU:Intel® 6th and 7th Generation CoreTM i3/i5/i7, Pentium®, Celeron® CPU, LGA1151
Chipset:Intel® Q170 Chipset, TDP 6W
Memory:DDR4-1866/2133, 4*U-DIMM, up to 64 GB
Storage:3*SATA 3.0, 1*SATA 3.0/mSATA
Expansion Interface:1*PCIe x16, 3*PCIe x4 , 1*PCIe x1 or Mini-PCIe (Wifi/3G/4G supported) , 2*PCI
BIOS:AMI UEFI BIOS
System:Windows 7/8.1/10, Linux

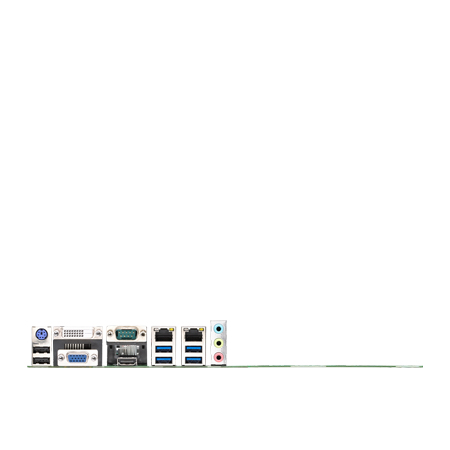

I/O Interface
Ethernet:2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial:4*RS232, 1*RS232/485/422, 1*RS232/485
USB:6*USB 3.0, 7*USB 2.0
Audio:Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2:1*PS/2 Port (Keyboard & Mouse)
GPIO:8*Programmable GPIO
Feature Interface:1*Case OPEN
Display
Display Interface:1*DVI-D: max resolution up to 1920x1200@60Hz 1*HDMI: max resolution up to 4096x2160@24Hz 1*VGA: max resolution up to 1920x1200@60Hz 1*eDP: max resolutionup to 1920x1200@60Hz
Multiple Display:Triple
Mechanical & Environment
Dimension:305*244mm
Power Input:ATX 28P
Temperature:Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity:Operation: 10%~90%, Storage: 5%~95%, non-condensing
